Ground Zero GZCS 10SUB-ACT MK2



Ny forsterkermodul med mer effekt, hurtigkobling for strøm og remote og mulighet for fjernkontroll

Ground Zero kommer med en veldig smidig subwoofer løsning for reservehjul. Plassbesparende og samtidig med fyldig lyd som høres ut som en ekte subwoofer. GZCS10SUB-ACT er en 10-tommers subwoofer montert i et 15 liter lukket kabinett sammen med en kraftig klasse A / B forsterker gir frekvensrespons på 30 - 180 Hz.

1 x 25cm / 10" 4 ohm
Optimalisert med KLIPPEL
Auto power on ved bruk av høynivå inngangene. Trenger da ikke styrestrøm / remote
Innebygget forsterker på 160WRMS/300W MAX
Justerbart delefilter 30-120Hz
Frekvensrespons 30-180Hz
0/180 grader faseskift
Fysiske mål: b x d x h: 620 x 440 x 120 mm (145mm med gummiføttene)
volum: 15 liter

Ekstra info:
- High quality spare wheel active subwoofer
- Klippel® optimized
- Efficient downfire technology
- Perfect solution for extremely flat spare wheel recesses
- No cut-out in the original trunk floor panel required
- High power 10 woofer
- Reinforced paper cone
- Class AB Mosfet amplifier
- High-Level Input with Auto-On



Invisible installation and providing a lot of extra bass to the audio system – GZCS 10SUB & GZCS 10SUB-ACT

Due to limited space in most of modern compact sized cars, many customers refuse to occupy the vehicle´s trunk with projecting and excessive subwoofer enclosures. However, they wish to have more bass from the car´s audio system. This was one of the reasons to develop a space saving subwoofer fitting the spare wheel recess. The new GZCS series subwoofer enclosure comes with a down firing flat 25 cm / 10” paper cone driver in a passive box as well as in an active version that includes a powerful amplifier with high- and low-level inputs. Specially shaped, the internal volume of the extremely flat box with about 15 liters / 0.52 cu ft remains sufficiently sized to provide a deep and substantial bass reproduction, fulfilling demands of sophisticated customers.

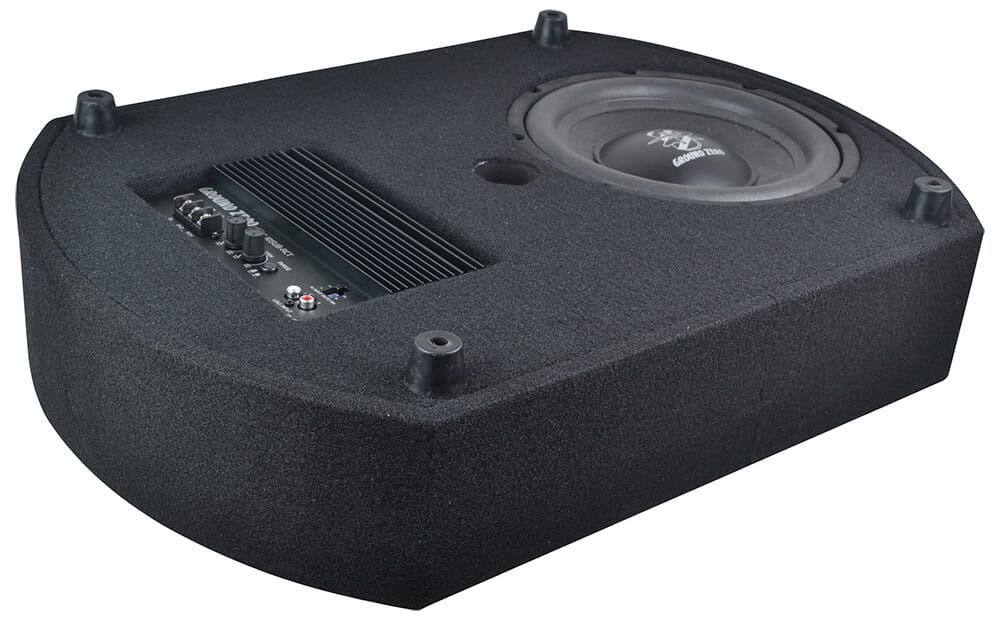

The unique down firing principle of the GZCS 10SUB provides not only extended low frequency reproduction but makes it unnecessary to cut out nor to change the floor mat or plate of the trunk in any way compared to most of the competitor subwoofer solutions on the market. This makes the installation very simply, invisible and revertible in case of leasing vehicles.

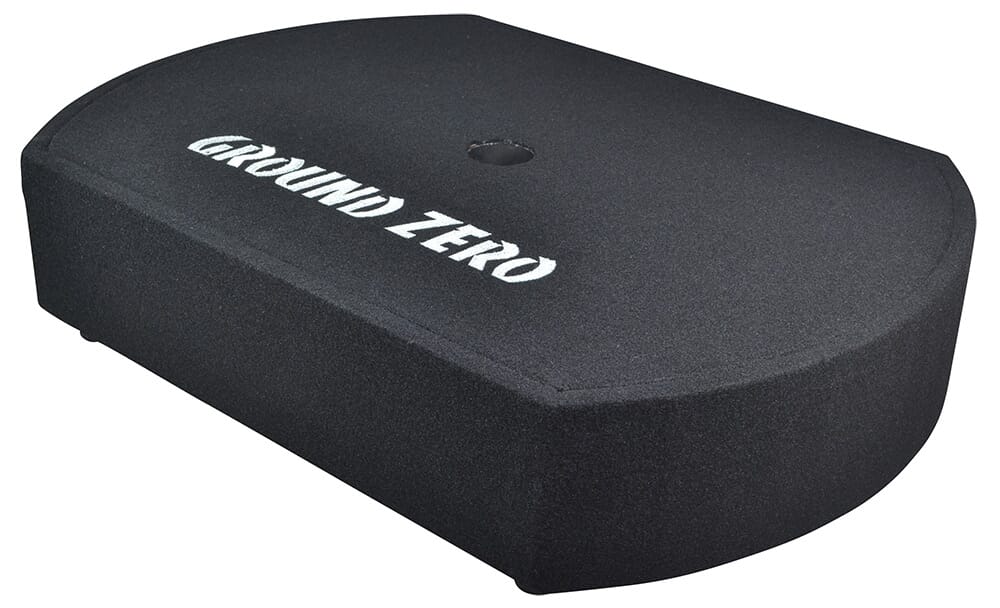

The sealed wooden enclosure with black carpet all around and a white logo stitch on top is just 12 cm / 4.7” high, offers flat rubber stands and can be fixed through the centered port. The 2x 2 Ohm subwoofer is capable of handling up to 300 Watt max. and matches perfectly the 300 Watt amplifier of the active version that includes a low pass filter with a range of 30 to 120 Hz.
